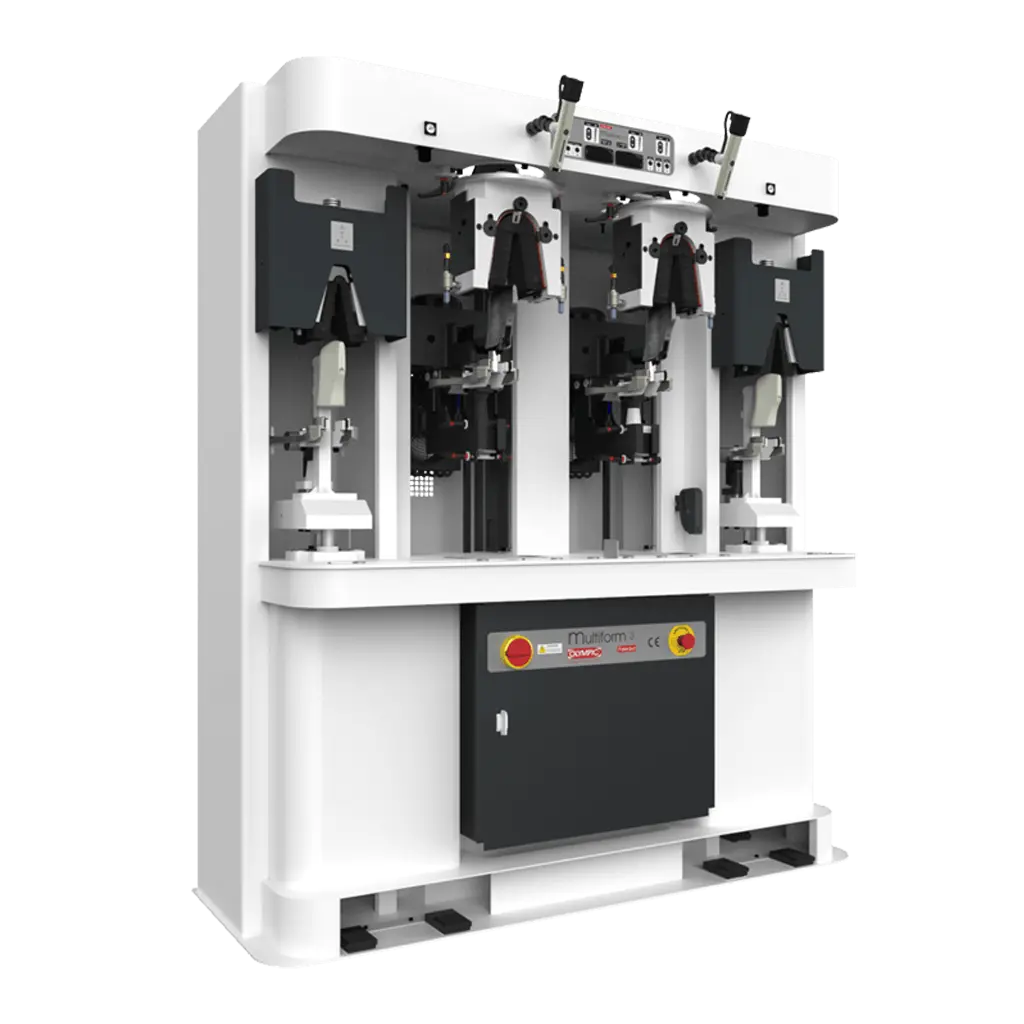

Multiform 3

Versatile Backpart Moulding Machine With Two Hot & Two Cold Stations
Men, Ladies (medium height), Working shoes

Overview

Multiform Mini is a backpart moulding machine dedicated to the production of high quality shoes. Designed and created to be the fundamental and most powerful tool for shoemakers aiming for perfection. Multiform MIni shapes with equal ease high quality women’s, men’s and children’s uppers, as well as boots, moccasins, and mini counters.

Features

multiform3-inclination

Pincers with inclination

The pincers of the Multiform 3 is a new developed system which can easily take inclination for high heel uppers
• Adapted to last’s shape
• Easy angle adjustment
• Quick adjustment
multiform-rotating

Rotating cushion system with integrated wipers

The Multiform 3 is equipped with the Olympic patented rotating cushion with integrated wipers which ensure a high perimetric pressure and shaping of the upper in combination with excellent upper flanging. The patented cushion can be rotated in seconds, allowing demanding procedures made simple and offers great versatility in production.
• Can be rotated in seconds.
• Demanding procedures made simple.
• Offers great versatility in production
multiform-redesigned

New redesigned moving cooling unit system

The Multiform 3 with its two independent cooling units ensures fast and excellent results for your uppers. With lifetime warranty and no downtimes during production.
multiform-quick-release

New quick release hot station mould system

Easy to remove with 2 simple moves.

Avoid downtime, change your production procedure in second
multiform-hammer

Brand New stitch hammering function

Brand New stitch hammering function helps you to stretch and smooth the back seam allowing the counter, lining and leather to better fuse each other and offering a smooth surface on the back of the shoe


Thermoplastic or leather board counters

The standard version of this machine is equipped with two hot and two cold stations for thermoplastic counters, but it can be delivered on-demand with four hot stations for maximum results on leather board counters too.

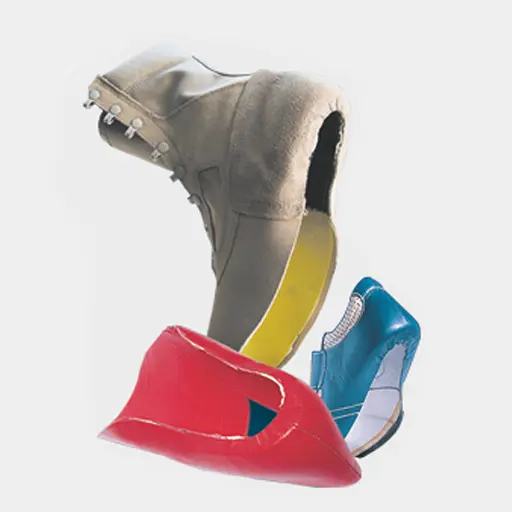

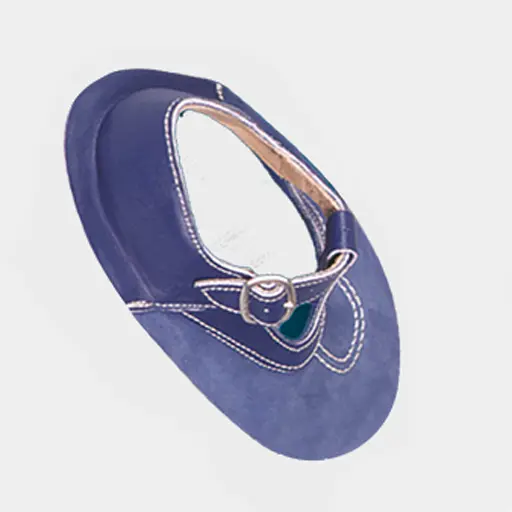

5 Operations in One Machine

Normal flanging

Moccasin flanging

Stitch down

Mini Counter

Good-year

Specifications

OperationElectro-Pneumatic
Pressure6 bar
Capacity1100 pairs per 8 hours
Voltage230V single phase 50Hz
Power Consumption2500 W
Dimensions (mm)1660 x 855 x 2030
Weight560 Kg

Multiform 3 Catalogue

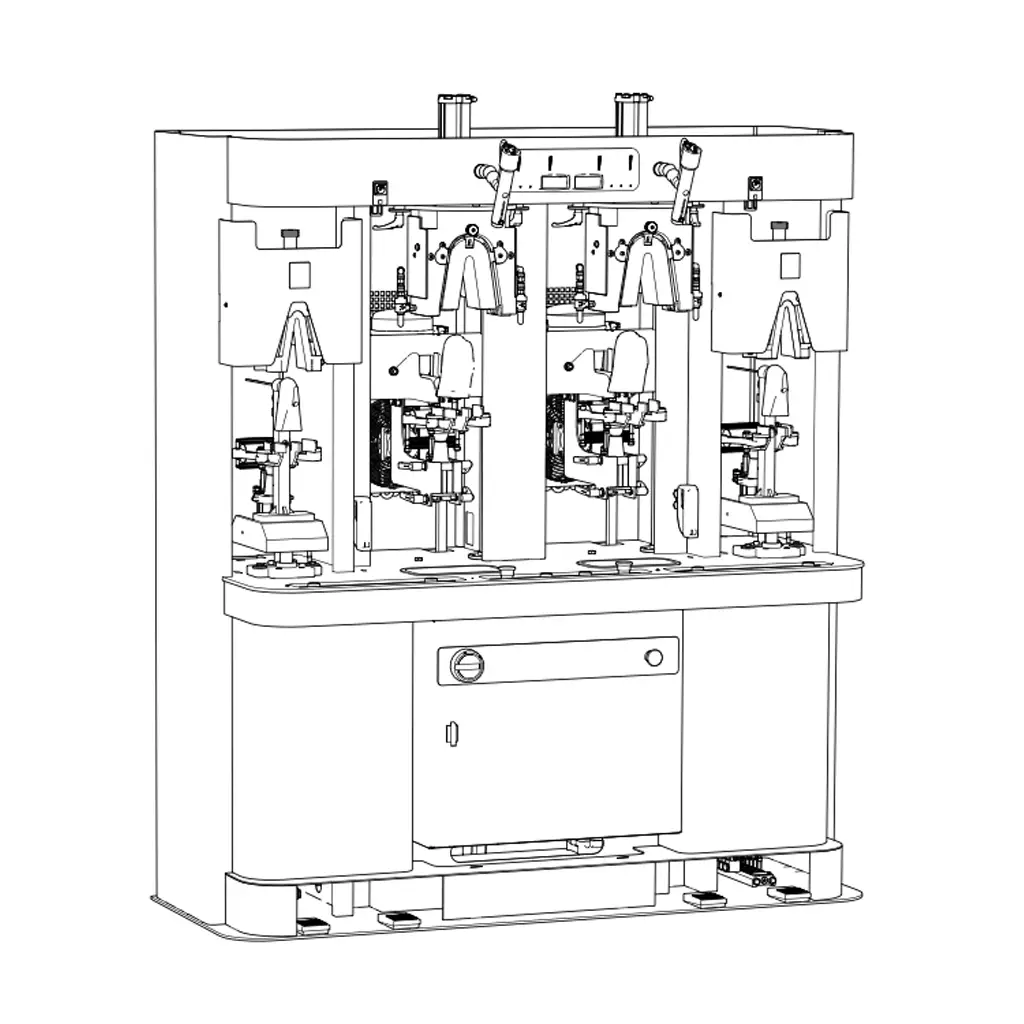

Multiform 3 Manual

Institutional Catalogue
