Multiform 4

Versatile Backpart Moulding Machine with Two Hot and Two Cold Stations

Overview

Multiform 4 is a backpart moulding machine dedicated to the production of high quality shoes. Designed and created to be the fundamental and most powerful tool for shoemakers aiming for perfection. Multiform4 shapes with equal ease high quality women’s, men’s and children’s uppers, as well as boots, moccasins, and mini counters.

Features

multiform-stretching

Over-stretching system

Same production uppers are often a little different and require different amount of pulling. Normally, the user pulls the uppers two or more times and this leads to undesired extension.
• Eliminates the above-mentioned phenomenon
• Allows the user to add the minimum extra pulling that each upper requires
multiform-rotating

Rotating cushion system with integrated wipers

The Multiform 4 is equipped with the Olympic patented rotating cushion with integrated wipers that ensures a high perimetric pressure and shaping of the upper in combination with excellent upper flanging.
• Can be rotated in seconds.
• Demanding procedures made simple.
• Offers great versatility in production.
multiform-redesigned

New redesigned moving cooling unit system

The Multiform Mini with its two independent cooling units ensures fast and excellent results for your uppers. With lifetime warranty and no downtimes during production.
• Eliminates the above-mentioned phenomenon
• Allows the user to add the minimum extra pulling that each upper requires
multiform-pincers

Divided independent pincers

The position of each Divided Pincer is adjusted independently according to the perimetrical shape of the aluminium last.
• Adapted to last’s shape.
• Easy angle adjustment.
• Quick adjustment
multiform-hot-station

Hot station pincers

New generation, hot station design, fully adjustable for flat and high level heel uppers
• Simple adjustments
• Universal lasts and moulds
• Inclination allows user to pull high-heeled shoes without harming the top line (up to 14 cm)
multiform-quick-release

New quick release hot station mould system

Easy to remove with 2 simple moves.
Avoid downtime, change your production procedure in second
multiform-4-hammer

Brand new stitch hammering function

Brand New stitch hammering function helps you to stretch and smooth the back seam allowing the counter, lining and leather to better fuse each other and offering a smooth surface on the back of the shoe

Accurate Upper Positioner (Optional)

For higher efficiency and precision, use the accurate upper positioner.

  • Increased repetitively
  • Plug and play installation
  • Easily adjusted

5 Operations in One Machine

Normal flanging

Moccasin flanging

Stitch down

Mini Counter

Good-year

The Inflatable Cushion

Our inflatable cushion (without wipers) technology offers you an ideal solution when you desire great shaping without or with semi-flanged uppers in your production. The patented technology of the cushion allows a uniform embracing and pressing of the upper with enormous pressure, which ensures a perfect final shaping and ironing of the top line.

  • Replacement of the pad in seconds allows easy cleaning and modification according to your current production.
  • Suitable for thermoplastic or leather board counters.
  • Compatible with all the Olympic back part moulders Multiform 3, Multiform 4, and Salpa2.

Universal pad for all ladies’ aluminium moulds

Pad for boots

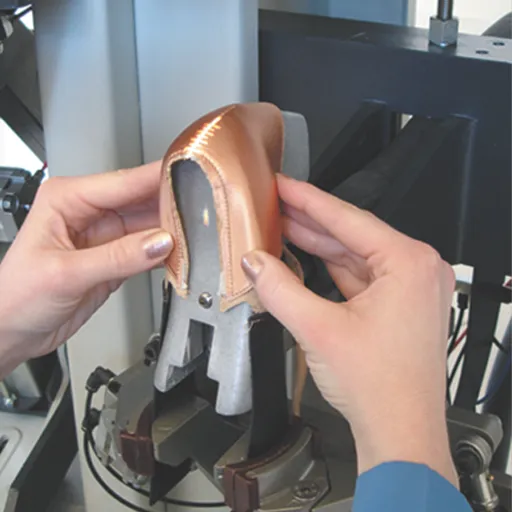

Mini counter moulding

2 minutes

Conversion time

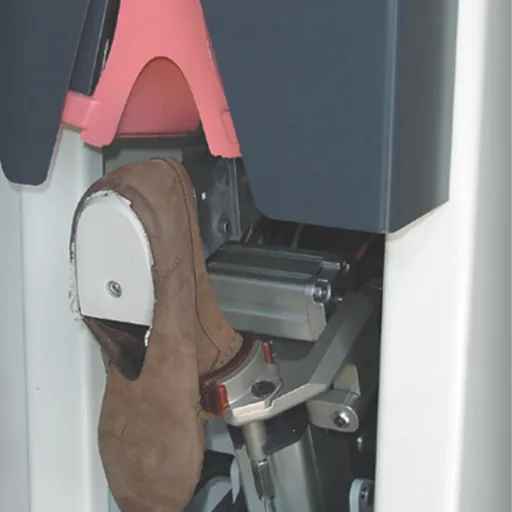

Moccasin moulding

5 minutes

Conversion time

Specifications

OperationElectro-Pneumatic
Pressure6 bar
Capacity1100 pairs per 8 hours max
Voltage230V single phase 50Hz
Power Consumption2500 W
Dimensions (mm)1660 x 855 x 2030
Weight560 Kg

Multiform 4 Catalogue

Download file

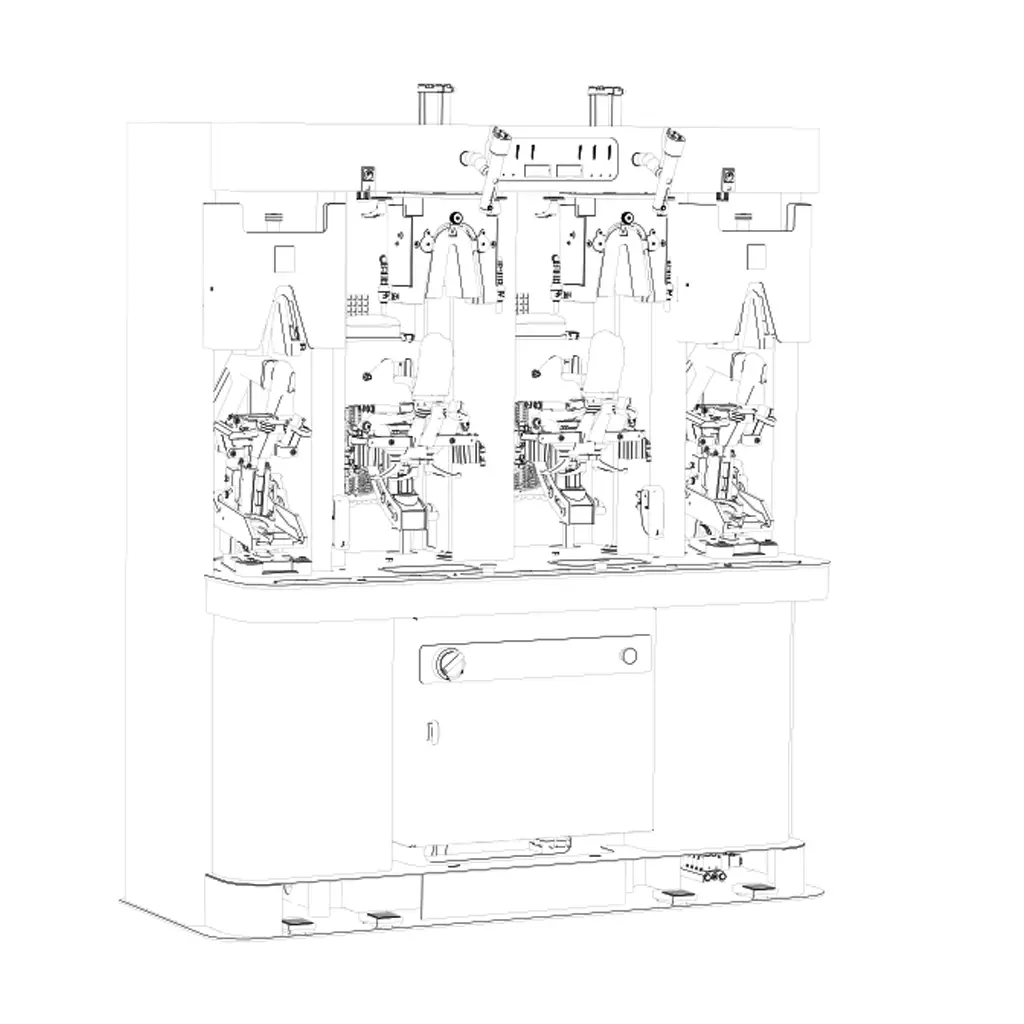

Multiform 4 Manual
