Multiform Mini

Versatile Backpart Moulding Machine with one hot & one cold station

Overview

Multiform Mini is a backpart moulding machine dedicated to the production of high quality shoes.
Designed and created to be the fundamental and most powerful tool for shoemakers aiming for perfection. Multiform Mini shapes with equal ease high quality women’s, men’s and children’s uppers, as well as boots, moccasins, and mini counters.

Features

multiform-stretching

Over-stretching system

Same production uppers are often a little different and require different amount of pulling. Normally, the user pulls the uppers two or more times and this leads to undesired extension.
• Eliminates the above-mentioned phenomenon
• Allows the user to add the minimum extra pulling that each upper requires
multiform-rotating

Rotating cushion system with integrated wipers

The Multiform Mini is equipped with the Olympic patented rotating cushion with integrated wipers that ensures a high perimetric pressure and shaping of the upper in combination with excellent upper flanging.
• Can be rotated in seconds.
• Demanding procedures made simple.
• Offers great versatility in production
multiform-redesigned

New redesigned moving cooling unit system

The Multiform Mini with its two independent cooling units ensures fast and excellent results for your uppers. With lifetime warranty and no downtimes during production.
multiform-pincers

Divided independent pincers

The position of each Divided Pincer is adjusted independently according to the perimetrical shape of the aluminium last.
• Adapted to last’s shape.
• Easy angle adjustment.
• Quick adjustment
multiform-hot-station

Hot station pincers

New generation, hot station design, fully adjustable for flat and high level heel uppers

• Simple adjustments
• Universal lasts and moulds
• Inclination allows user to pull high-heeled shoes without harming the top line (up to 14 cm)
multiform-quick-release

New quick release hot station mould system

Easy to remove with 2 simple moves.
Avoid downtime, change your production procedure in second
multiform-hammer

Brand New stitch hammering function

Brand New stitch hammering function helps you to stretch and smooth the back seam allowing the counter, lining and leather to better fuse each other and offering a smooth surface on the back of the shoe

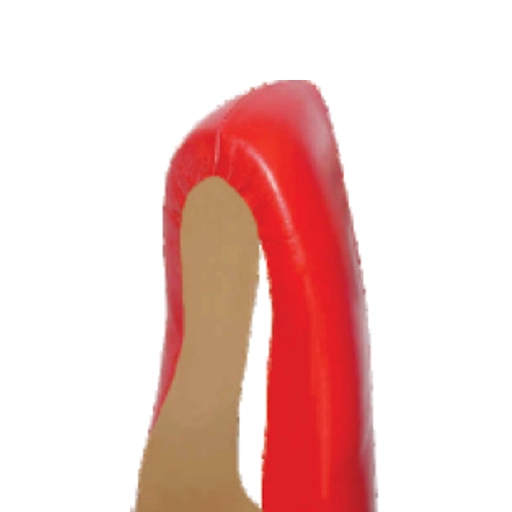

Thermoplastic or leather board counters

The standard version of this machine is equipped with one hot and one cold station for thermoplastic counters, but it can be delivered on-demand with four hot stations for maximum results on leather board counters too.

1 Hot—1 Cold Station with airbag (no flanging)

1 Hot—1 Cold Station with wipers

5 Operations in One Machine

Normal flanging

Moccasin flanging

Stitch down

Mini Counter

Good-year

Mini counter moulding

2 minutes

Conversion time

Moccasin moulding

5 minutes

Conversion time

Specifications

OperationElectro-Pneumatic
Pressure6 bar
Capacity550 pairs per 8 hours
Voltage230V single phase 60Hz
Power Consumption1500 W
Dimensions (mm)905 x 938 x 1965
Weight330 Kg
