VC-16D

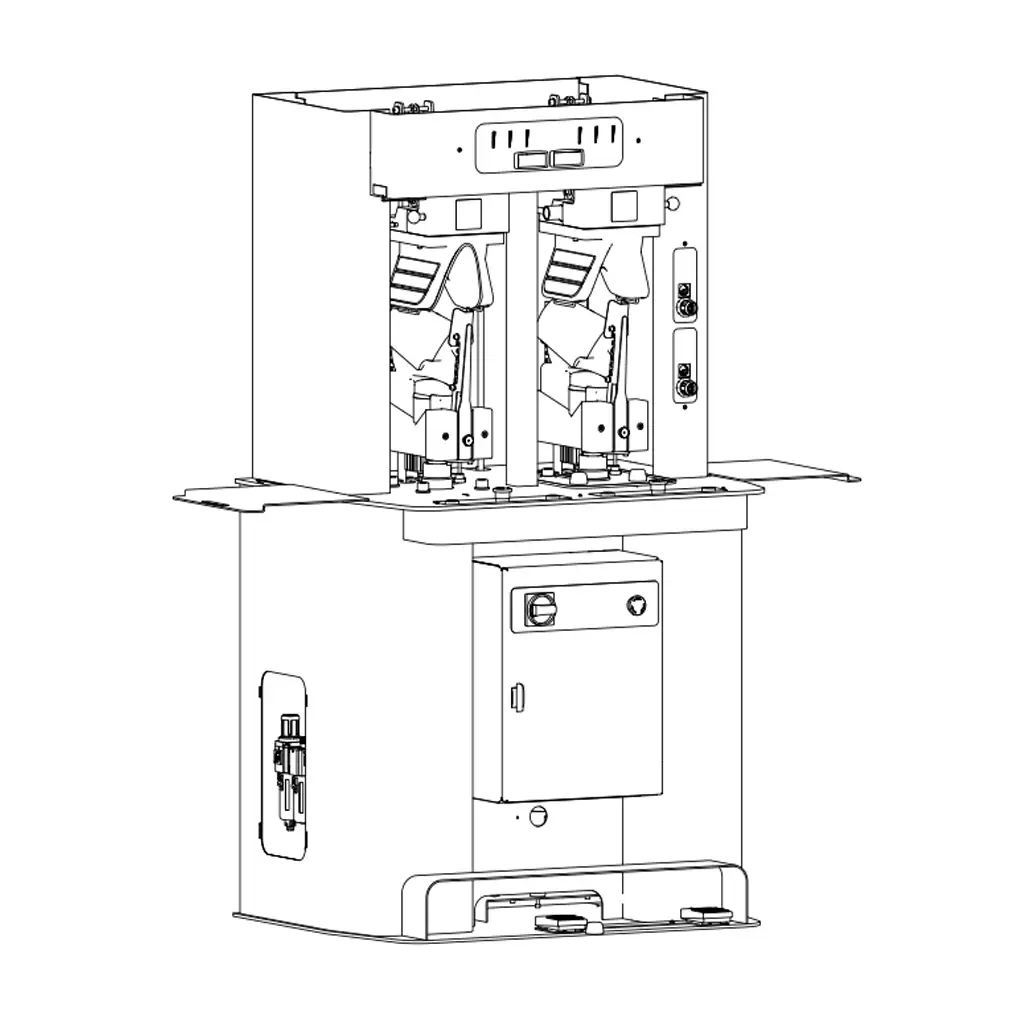

Crimping – combining & ironing machine for the finished uppers with one hot and one cold station with multi-positioning tilting head.

Overview

Crimping-compining and ironing machine for the finished uppers with one hot and one cold station with multi-positioning tilting head
In recent years, the VC 2001 has started a revolution in 3d shaping and became a bestseller since it consists a precious tool for most shoe productions. The new redesigned VC-16, with many new added features, improves the final look of the shoe, and facilitates the fitting of the upper on the last during forepart lasting. The VC Series, crimps combines & irons the finished upper in order to have perfect fitting on the last.

Features

New positioning guide available

The new positioning guide allows you to accurately position your uppers on the machine to ensure the repetitivity and quality of the result. The adjustmet is simple and can change in seconds.

Folding tables for vamp placement

Everybody needs as much as working place as possible.It looks simple but its so efficient and useful to have additional place to keep a basket with uppers or anything else you may need.

The Beneficial hot and cold station

The existence of one hot and one cold station offers great potential and increases the chances of succeeding in great 3D shaping. Even if you use synthetic or leather material, the result you get from the combination of the hot and cold stations will be significantly improved, and will it be retained in the final shoe. Also, the two stations offer you the chance to progressively achieve higher crimping results by using initially a head with a smoother angle (hot station) and then one with an excessive one (cold station).

Advantages

No more wrinkles
No deformation of the uppers
Multi-positioning tilting head
Progressive ironing
Universal mould, suitable for any design of upper (men’s, women’s, children’s)

Thanks to the simple adjustments, the procedure of the upper crimping can be variable and very easy.
Easy placing of the upper without pincers
Thanks to the pneumatically adjustable hardness of the cushion, a wider range of angles can be achieved.
The machines are suitable for finished uppers, boots, and sandals.

Specifications

Operation	Electro-Pneumatic
Pressure	6 bar
Capacity	150 pairs per hour
Voltage	230V single phase 50Hz
Power Consumption	1500W
Dimensions (mm)	950 x 743 x 1663
Weight	225 Kg
Head linear & angular movement	Yes
Positioning guide	Yes
Progressive ironing	Yes
Cooling Unit	Yes
Folding Tables	Yes
